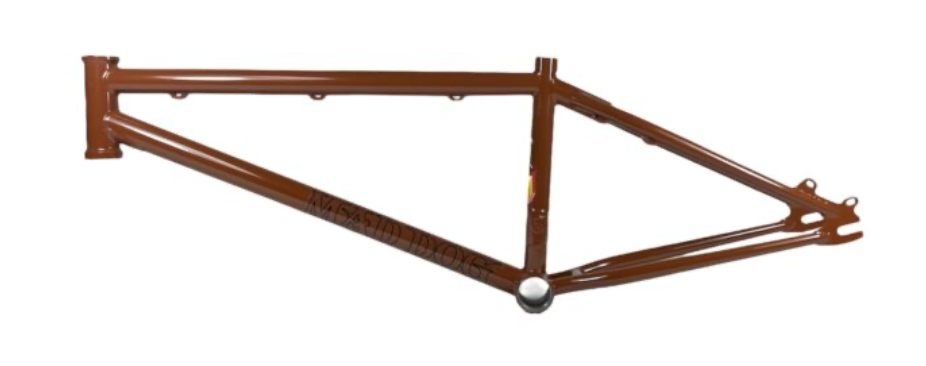

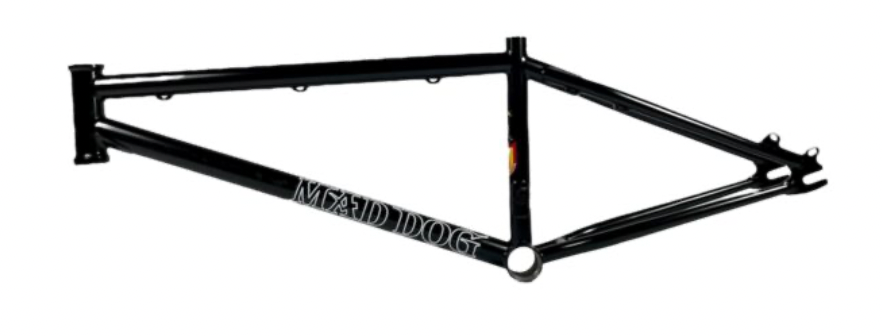

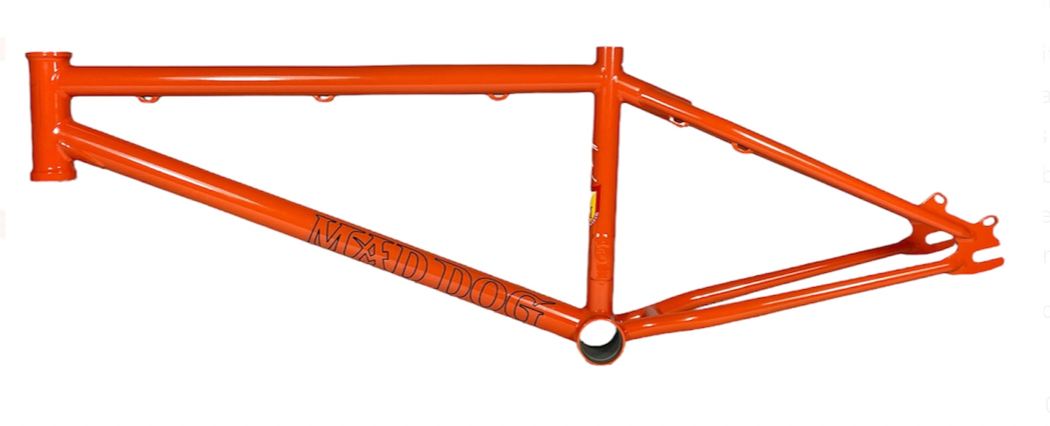

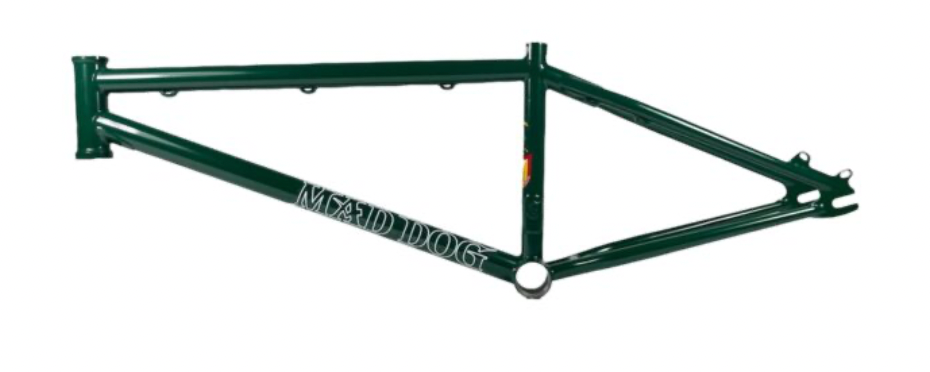

S&M 22 INCH WHEEL MAD DOG FRAME DISC BRAKES
YES!! BRAND NEW RUN OF S&M MAD DOG 22" FRAMES! (MADE FOR 22" WHEELS)
DISC BRAKES ONLY!!
WE ALSO SELL THE MATCHING FORKS
Throw a dog a wishbone! And a disc brake, with a tall stand-over, but keep it light and you’ve got yourself the reincarnated Chris “Mad Dog” Moeller frame. It only took 36 years for S&M’s Top Dawg to drop another bike custom-crafted for his breed of biking, but much like the original, its designed for dudes who want to terrorize the trails and the track and claim their territory doing it – this time on 22″ wheels!

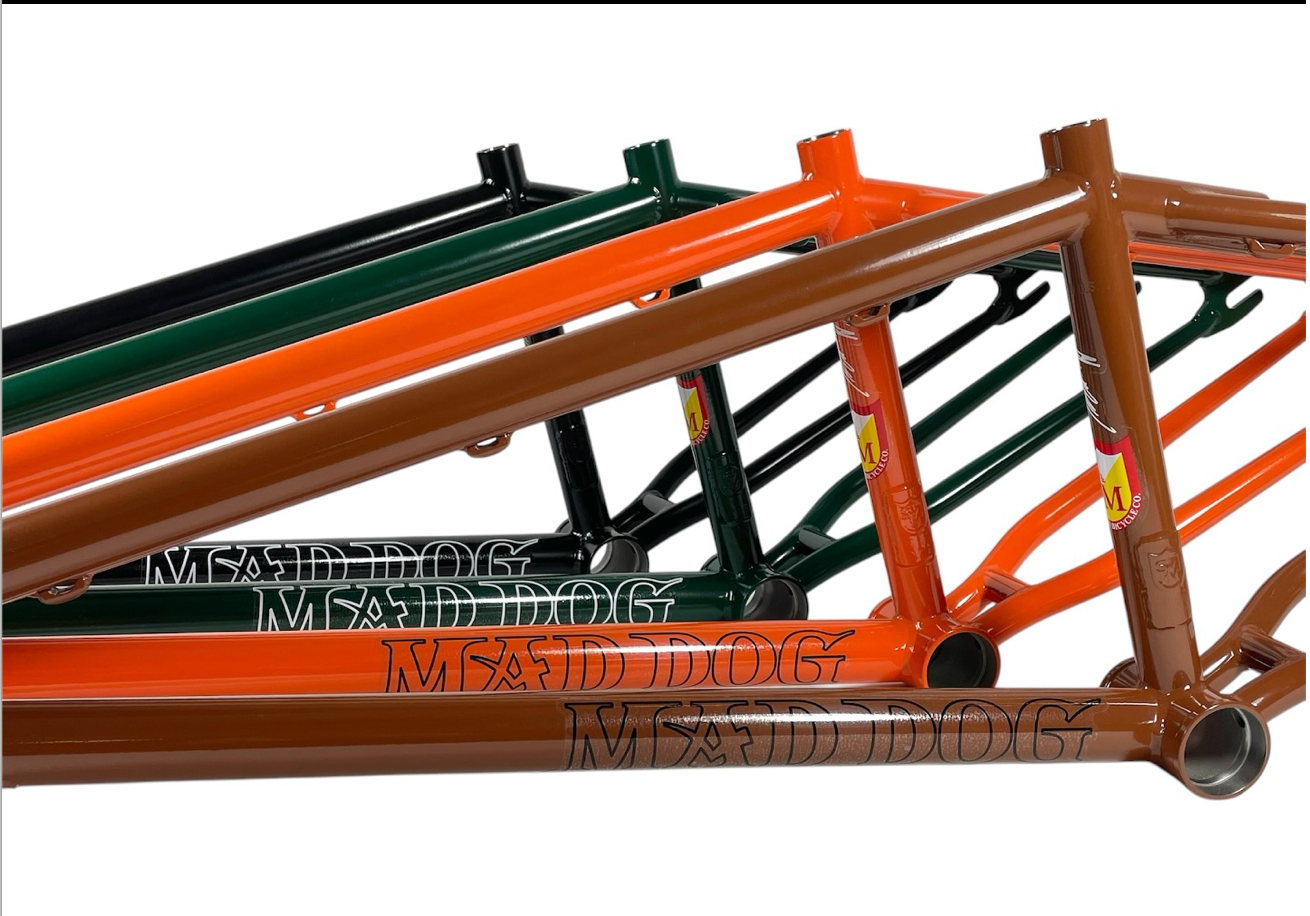

Engraved Shield on Headtube. Engraved ’87’ on BB shell. MAD DOG-tag on seat-tube.
Disk mount is designed for 120mm rotor with 0mm IS to POST mount adaptor (Profile hub or hub with similar narrow flange width recommended for spoke/caliper clearance) , 140mm rotor requires a 20mm IS to POST mount adaptor. Max sprocket size with proper chain alignment is 36 tooth. Seat tube is t-slotted for traditional 28.6mm seat clamp or Quick Release 28.6mm seat clamp. Rear drop-out spacing is traditional BMX 110mm.
|
REAR END LENGTH |
14.15″ |
|
HEAD TUBE ANGLE |
74.25° |
|
STANDOVER HEIGHT |
10″ |
|
B.B. HEIGHT |
11.8″ |
|
SEAT TUBE ANGLE |
71° |
|
HEAD TUBE |
5″ Tall Integrated Campy Style |
|
B.B. STYLE |
Mid |
|
BRAKE MOUNTS |
Disk 120mm Rotor Spacing with 0mm IS to POST mount adaptor, 140mm Rotor with 20mm IS to POST mount adaptor. |
|
DROPOUTS |
3/8″ |
|
SEAT POST SIZE |
1″ / 25.4mm – Frame slotted for 28.6mm Seatpost Clamp |
|
WEIGHT |
5.1 lbs |
|
MAX TIRE |
22X2.35″ |
|
MAX SPROCKET |
36T |
