PLEASE EMAIL US FOR A FULL QUOTE.. THANKS!!***

The Street Sweeper is designed with serious street riders in mind.

Built around Jake Seeley’s all-new chromoly aftermarket signature frame, it uses a 75.25° head tube angle, a very short chainstay and a higher bottom bracket to match perfectly with Jake’s technical riding style. With its 4-piece bars, 160mm cranks, sealed Odyssey Clutch freecoaster and Sunday Street Sweeper tires, this is truly a pro-level bike.

Key Features

• Aftermarket Sunday Street Sweeper frame
• 100% Chromoly Forks and 4-piece Bars
• Sunday Seeley Signature Grips
• Sunday Camo Sweep Seat, Pivotal
• Odyssey Clutch v2 Freecoaster
• Odyssey Quadrant Rims
• FSA Conical Headset
• Right Hand or Left Hand Drive
• Sunday Street Sweeper 2.4" Tires

Specifications

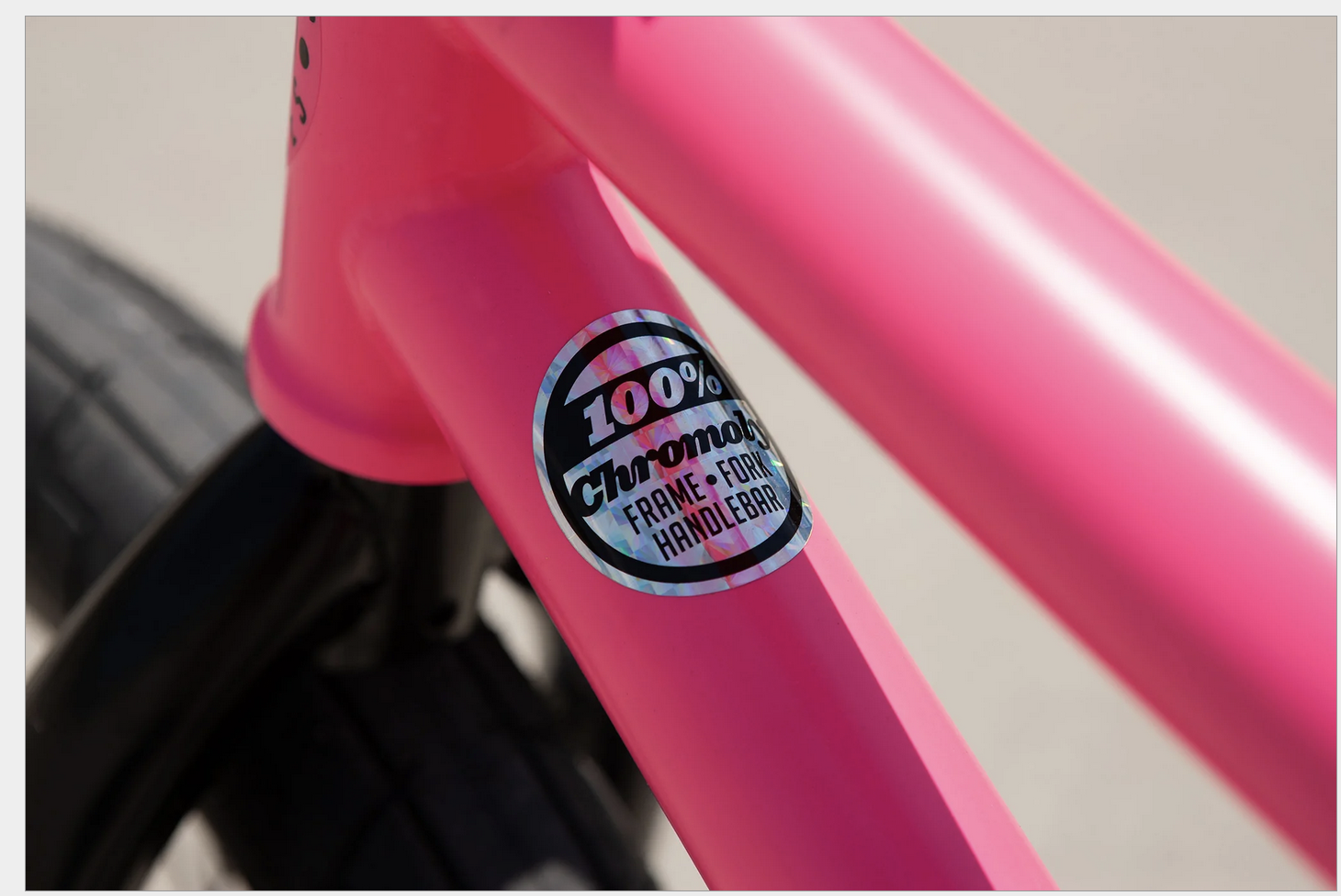

Frame: Sunday Street Sweeper, 20.75" top tube, 100% chromoly aftermarket frame, removable brake hardware
Fork: Sunday Pro, 20", 100% chromoly fork w/ 1-piece steerer tube and welded pre-load, 25mm offset
Handlebar: Sunday, 100% chromoly, 4-piece
Stem: Sunday Freeze Top load, 48mm
Headset: FSA integrated conical, 1-1/8"
Alloy Cap: Sunday M16, aluminum
Brake Lever: Odyssey Springfield
Brakes: Odyssey Springfield U-brake
Brake Cable: Odyssey Quik Slic

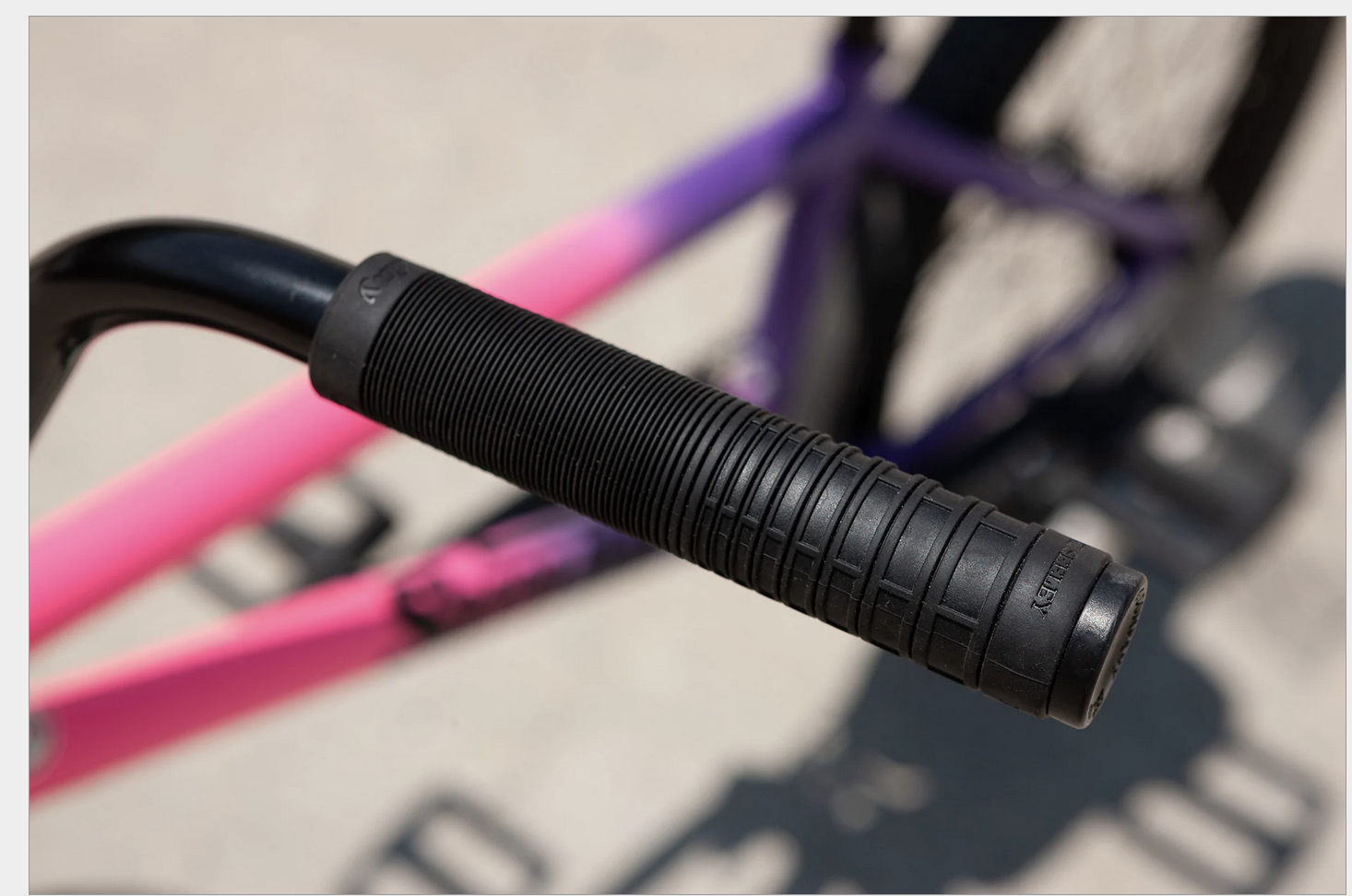

Grips: Sunday Jake Seeley

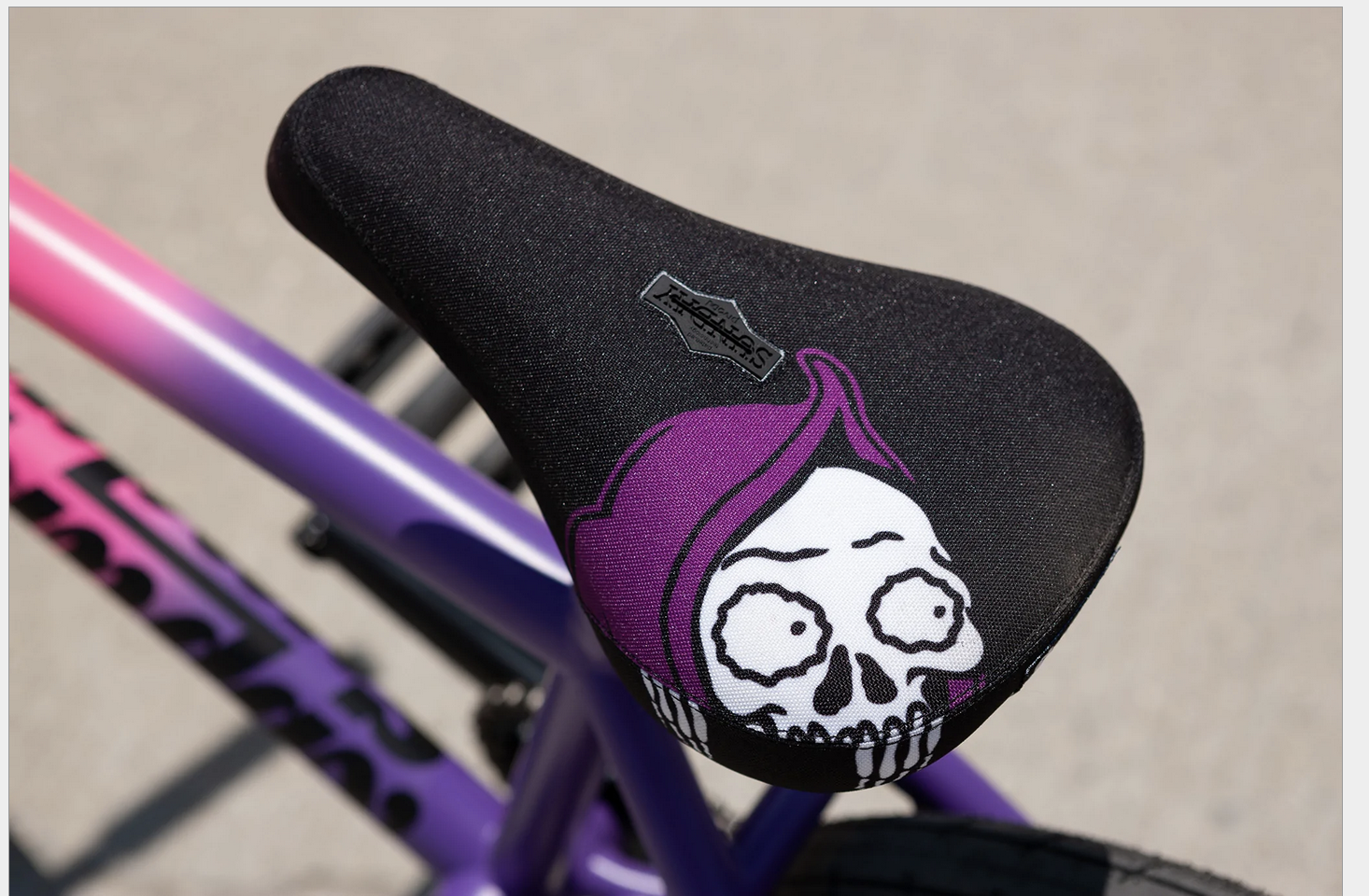

Seat: Sunday Creepy Sweeper, Pivotal
Seat Alternate: Sunday Duck Canvas Black, Pivotal
Seat post: Sunday Pivotal
Seat Clamp: Integrated
Sprocket: Sunday Sabretooth v2, 25T, 6061 aluminum
Cranks: 160mm, 3-piece, chromoly
BB Parts: Sealed, Mid, 19mm

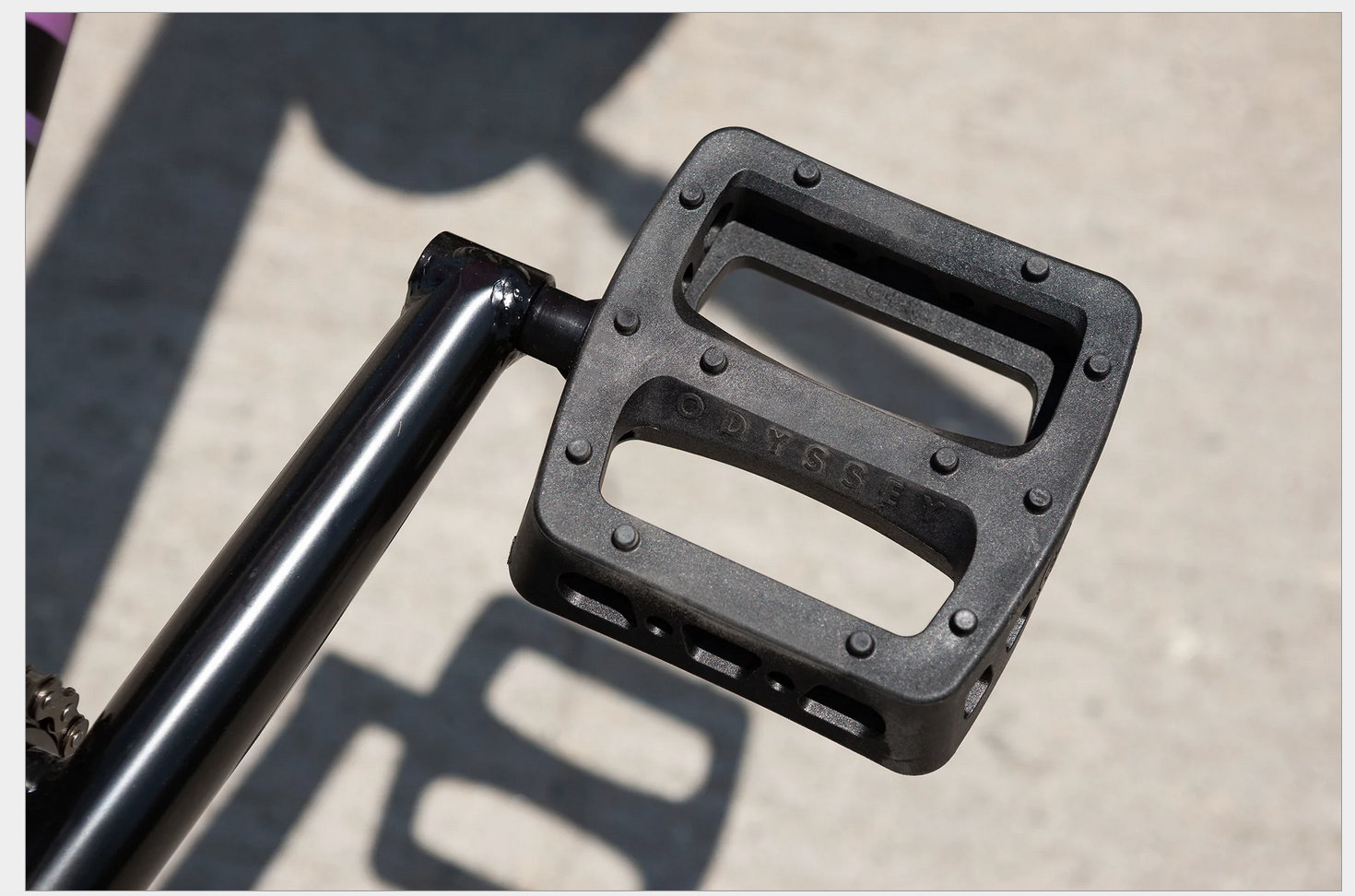

Pedals: Odyssey Twisted PC Pro

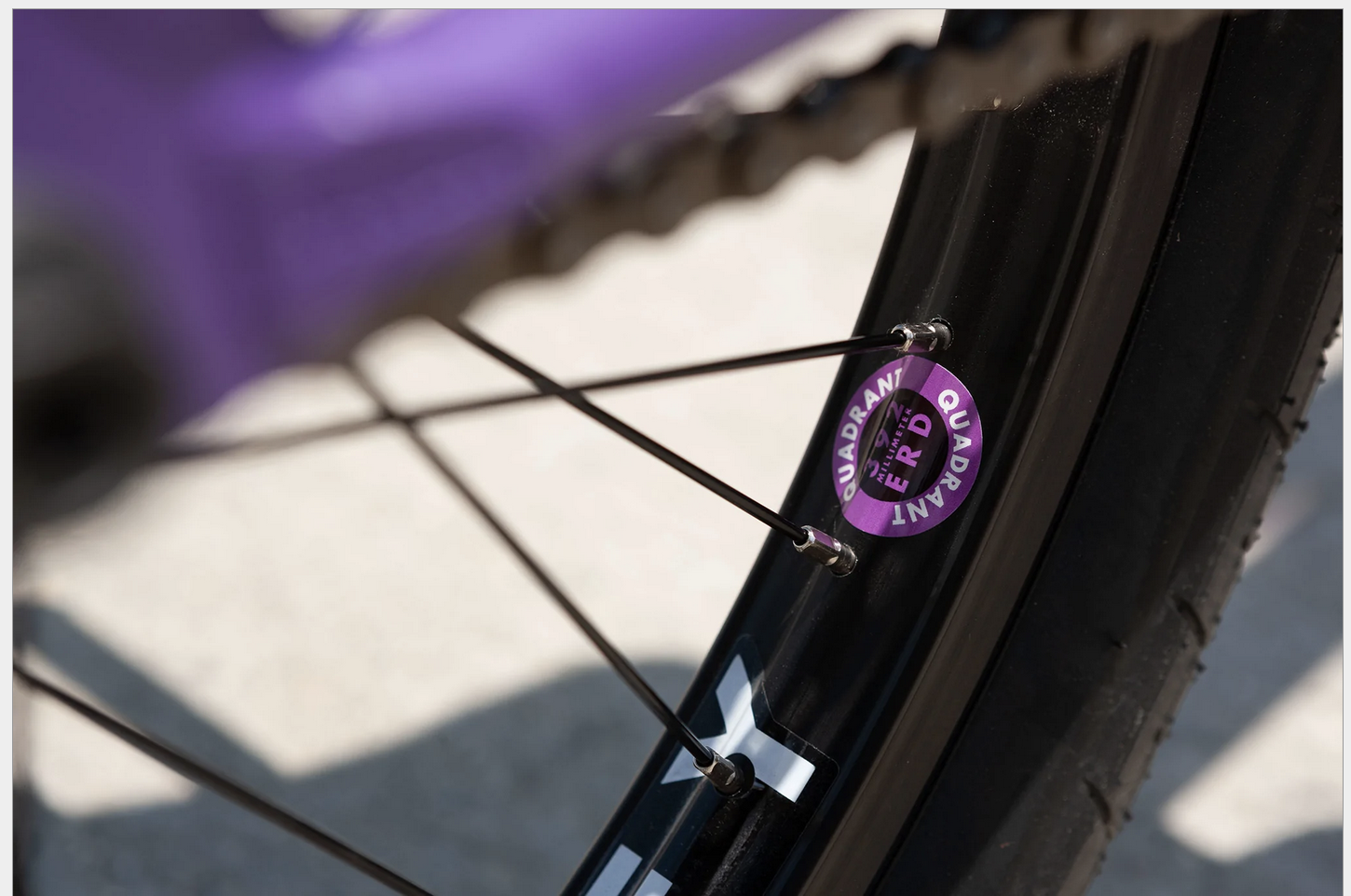

Rims: Odyssey Quadrant, 20", 36H
Front Hub: Sunday, 36H, low-flange, sealed , 3/8" female axle

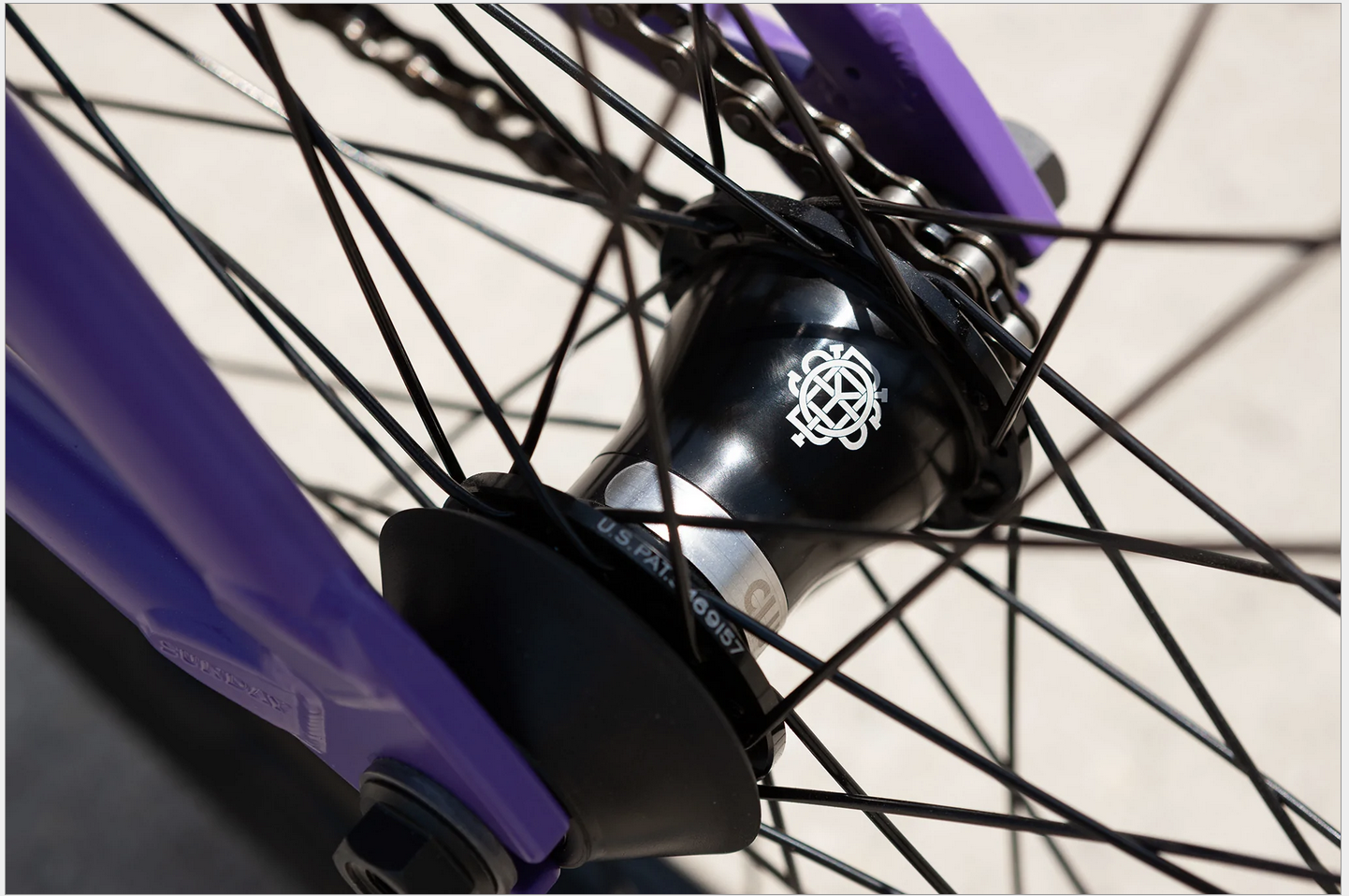

Rear Hub: Odyssey Clutch v2 freecoaster, 36H, 14mm female axle w/ 9T driver, non-drive PC guard
Spokes: 14g steel, black
Tires: Sunday Street Sweeper v2, 20 x 2.4" (F & R)
Chain: KMC Z1 wide
Approx. Weight: 24.97lbs (brakeless)

Frame Geometry

Top Tube Length: 20.75"
Head Tube Angle: 75.25°
Seat Tube Angle: 71°
Chainstay Length: 12.7"-13”
Bottom Bracket Height: 11.7"
Headtube Length: 4.7"
Standover: 8.85”

Handlebar Geometry

Rise: 9"
Width: 29"
Backsweep: 12°
Upsweep: 3°
